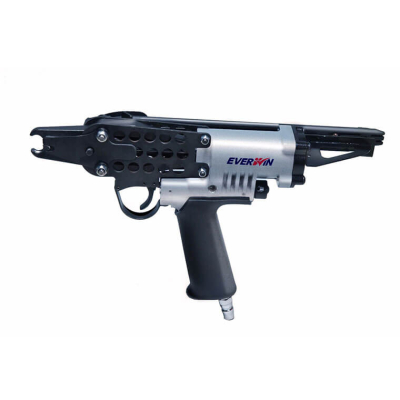

EVERWIN HR7E CL24 HOG RING PLIER 40MM NOSE

EVERWIN HR7E HOG RING PLIER (LONG NOSE)

Industrial 15 GA pneumatic hog ringer with a 40 mm long nose for improved reach in tight spaces. Compatible with Bostitch RING15 / Meihotech GDH rings, it features all-metal construction for durability, pneumatic piston return for faster cycles, and left/right-hand adjustability. Can be integrated with zero balancer and manifold kits for continuous production.

Features

• 40 mm long nose for deeper access

• Pneumatic piston return for reduced cycle time

• Left- or right-hand adjustable

• Rugged all-metal construction

• Nose options: HR7 (25 mm), HR7E (40 mm), HR77XE (70 mm)

Applications

• Bag closure (concrete, powders, liners)

• Upholstery (car & boat seats)

• Wire cages & fencing

• Mesh bags (poultry, produce)

• Netting, rope, bungee fastening

• Bedding (flange to spring)

• Insulation (heat & sound)

Specifications

• Weight: 1.39 kg (3.0 lbs)

• Dimensions (LxWxH): 354 x 89 x 189 mm

• Operating Pressure: 5.9–7.9 bar (85–115 psi)

• Air Consumption: 0.5 L/sec @ 90 psi (1.05 cfm)

• Capacity: 100 rings

• Fasteners: 15 GA RING15 / GDH (12 mm height, 23.9 mm crown, 1.8 mm wire)
