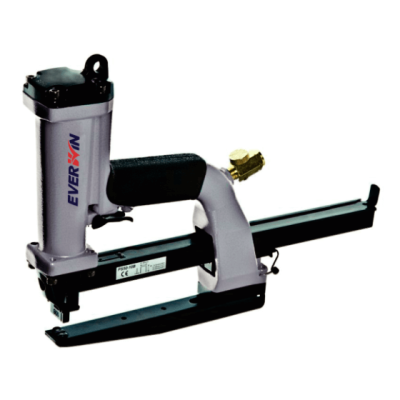

EVERWIN PS50-10B-CR CARTON PLIER STAPLER

EVERWIN PS50-10B Carton Plier Stapler

An industrial 16mm (5/8") plier stapler designed for corrugated containers, pallet boxes, and inserts. Part of the PS series, it combines low noise, balanced handling, and high-speed stapling with a robust cast frame for long-lasting durability.

Applications

• Corrugated Containers

• Pallet Boxes

• Container Inserts

Key Features

• 6"x1" high throat for flexibility

• Curved anvils available for varied applications

• Powerful shuttle blade for pre-compression

• Air-flow regulator for adjustable depth

• Rapid cycling engine for fast output

• Special-treated clinch plate for extended tool life

• Rugged gravity-cast frame for maximum durability

Specifications

• Weight: 2.2 kg (4.8 lbs)

• Dimensions: 240 x 55 x 370 mm

• Operating Pressure: 36–55 PSI (2.5–3.9 bar)

• Capacity: 100 staples

• Fasteners: SB103020 Carton Staples, 10–16 mm (3/8"–5/8")
